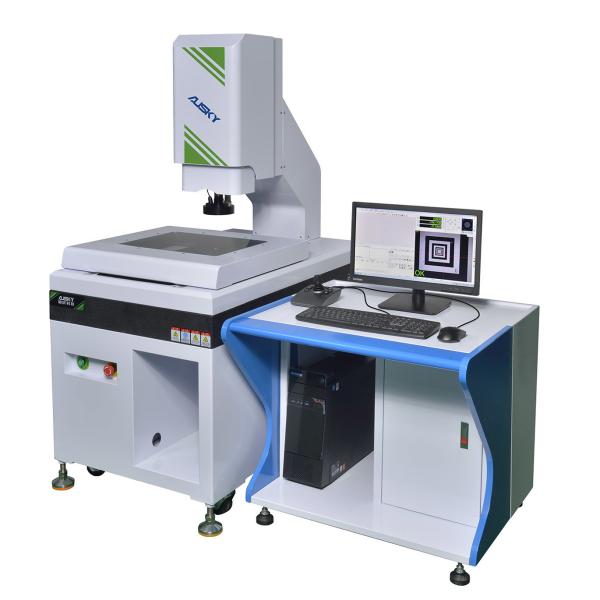

New High Resolution High Efficiency Fully Automatic Vision Measuring Machine With Competitive Price

1. Construction of the instrument:

1. Construction of the instrument: Designed with workbench of a marble panel base and cantilever-type mechanism, the instrument is characterized by steady accuracy, good adaptability to working environment, simple, strong, non-deformable and good-looking body structure, and ergonomically designed operating mechanism, and meanwhile is equipped with powerful measuring software and is easy to operate

2. Movement of Mechanism:

This measuring instrument is provided with tri-axial automatic control and equipped with import precision Nidec patch grating system, Japan Panasonic servo high-efficiency motor system, Taiwan TBI screw rod, Taiwan HIWIN high-precision guide rail as well as professional measuring software for measurement.

3. Merits with auto-measuring instrument:

This instrument can avoid human error of the “Object Work Piece” as caused by manual measuring, and can as well avoid secondary damage caused to “Object Work Piece” by manual measuring, with ensured mass stability and criteria consistency of the object work piece. This instrument can enhance multi-fold the detecting efficiency in the production process, identify the defects and control over non-yields beforehand in production process, and can meanwhile help lower part of the costs spent on manual detection, and increase the timeliness of product delivery.

4. Applicable scope:

This measuring instrument can be used for dimensional accuracy measurement of various Aerospace, automobile and ship, scientific research and teaching, electronics, hardware and plastic, precision metal stamping plate, screen printing plate, acrylic plate, LCP film, PCB board, LCDTFT, glass cover plate, TP, frame of ultra-large LCD, die cutting, backlight module group, as well as for auxiliary measurements such as reverse engineering graphic R & D, design, drawing editing, laboratory inspection, etc.

5. Main functional configurations of instrument:

This instrument is used in with AUSKY professional automatic measurement software, Aotian special controller,MEAN WELL power supply, Panasonic servo motor drive system, TEO color 650TV CCD, PMS high resolution of 0.7–4.5 folds special high-definition Auto zoom and fixed-focus screen optical lens, LED partition program-controlled light source, import precision Nidec patch grating system, Lenovo computer,LCD monitor,keyboard, mouse, and the digital measurement.

Technical parameters

Configuration List:

Introduction to the software functions:

Software interface

A. Multiple measuring methods, including auto edge-tracing, auto sectional edge-tracing, mouse on-screen point fetch, crossline pointing, proximity pointing, contrast and pinnacle pointing, contour pointing, probe pointing, laser pointing, and etc.

B. Powerful edge-tracing algorithm ensures sampling point accuracy and automatic pixel correction on sampling stability,
where, one stroke will enable automatic pixel correction, needless to shift frequently.

C. Element construction
Element structure technique, offers multiple methods, such as shifting, rotating, extracting, combining, paralleling,
plumbing, mirroring, symmetry, intersecting, tangentially structured elements; Element structure will enable user to
tackle some elements hard to measure, and consequently resulting in increased working efficiency; The compositional
process is to select elements for compositional involvement, select the result element, clear and simple. Options for
composition methods available in form of illustration.

D. Ample functions of the image window
Can display magnification ratio and scale, and can do simple distance and angle measuring

E. Ample functions of coordinate system
Can establish multiple coordinate systems on the basis of the actual circumstance, can switch flexibly data under all
coordinate systems, can achieve conveniently switchover between straight angle coordinate system and polar coordinate
system, can achieve the save and call-out of different coordinate system, and can display different modes of coordinate system.

F. Convenient program editing and modifying

Enable to modify conveniently light source data, kinetic data, focusing data, program location, measuring height, and
etc., as well as can replace existing elements with new elements.

G. Ample tolerance functions
Multiple calculations of size and geometric tolerance available; Allowable for calculating 2D and 3D tolerance, e.g,
geometric tolerance as roundness, cylindricity, linearity, planeness, etc., as well as tolerances as location, parallelism,
verticality, tilt, concentricity, pulsation, etc.

H. Probe measuring

Powerful functions of software probe measuring enable to character 2D & 3D elements such as height, plane, cylinder,
cone, sphere, ring, etc., and support multiple methods for establishing 3D coordinates system, with rapid and efficient
programming.

Overall Merits:

A. Suitable for measuring applications of multi-variety, complex dimensions and demanding measuring accuracy, with even easy and quick measuring efficacy and enhanced measuring efficiency.

B. The instrument has the following merits with regard to image processing: automatic burrs skip-over, auto generating measurement reports and results statistics, and open for linking to printers, etc., suitable for wide industry applications.

Saving cost:

This instrument can achieve multiple functions on the same set of equipment, resulting in saved user costs for repeated purchasing of measurement devices as well as saved labor costs and equipment occupation space. It can meet the needs of user enterprises for greater development in the future and the demand for rapid expansion of product testing to lay sound foundation for users’ quality assurance.
