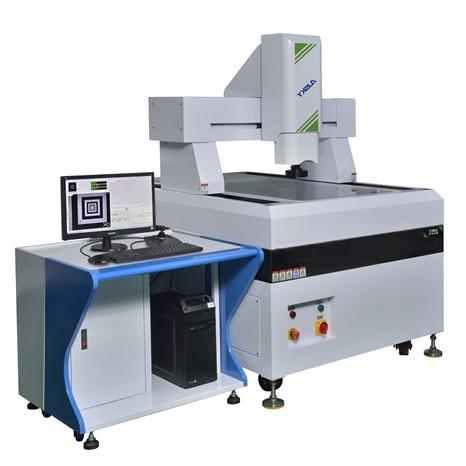

Smart Video Measuring Equipment Image Metrology Software Vision Cmm
Machine
Instrument Features:
● Adopt High-precision granite gantry structure, never
deformation,high stability,high-end good looking.
● Imported high precision grating system.
● Imported P-grade high precision linear guide rail and high
precision ball-screw transmission.
● Imported Panasonic servo system,
high-precision,high-efficiency,high-stability.
● Zoning adjustment of LED light source, available for multi
directional projection .
● Manipulator control CNC software,Auto focusing,Auto zoom ratio
switching,Auto edge tracing,Auto light sensing,Auto measuring,
Assurance measuring high efficiency.
● Configured with leading edge specialized proprietary measuring
software.
● Configured with import RENISHAW high precision contacting type
probe group.Configured with high precision laser tester,Realizable
auto programming Co-axial complex measuring image / probe/ laser.
Technical parameters
| Paramter and Model | AMH1210 | AMH1512 | AMH2115 | AMH2515 |
| Workbench | Glass table size(mm) | 1300X1048 | 1600X1248 | 2200X1548 | 2606X1548 |
| Load-bearing weight(kg) | 30 | 30 | 30 | 30 |
| Travel | X axis(mm) | 1000 | 1200 | 1500 | 1500 |
| Y axis(mm) | 1200 | 1500 | 2100 | 2500 |
| Z axis(mm) | 200 | 200 | 200 | 200 |
| Image and measurement system | Display resolution(mm) | 1/0.5(Optional) |
| Instrument precision(um) | (4+L/200)um |
| Imaging system(CCD) | TEO HD color |
| Zoom objective(X) | High percision automatic zoom lens program control |
| Total video magnification(x) | 30~190X |
| Working distance(mm) | 96mm |
| Light source | LED programmable partiton light source(Coaxial light source
optional) |
| Outline dimension(mm) | 2090X1630X1800 | 2390X1830X1850 | 3000X2130X1850 | 3350X2130X1850 |
|
| Weight(kg) | 2500kg | 3500kg | 6000kg | 7000kg |
| Power supply | 220V AC 50Hz |
Configuration List:
Sequence number | Name | Unit | Quantity |
1 | Main body | PCS | 1 |
2 | Instrument table | PCS | 1 |
3 | AUSKY software | PCS | 1 |
4 | video card | PCS | 1 |
5 | Joystick | PCS | 1 |
6 | Dongle | PCS | 1 |
7 | Computer | PCS | 1 |
8 | Liquid crystal display | PCS | 1 |
9 | Aocheng optical calibration block | PCS | 1 |
10 | Precision probe(optional) | PCS | 1 |
11 | Keyboard and mouse | PCS | 1 |
12 | Specification warranty card certificate | PCS | 1 |
Introduction to the software functions:

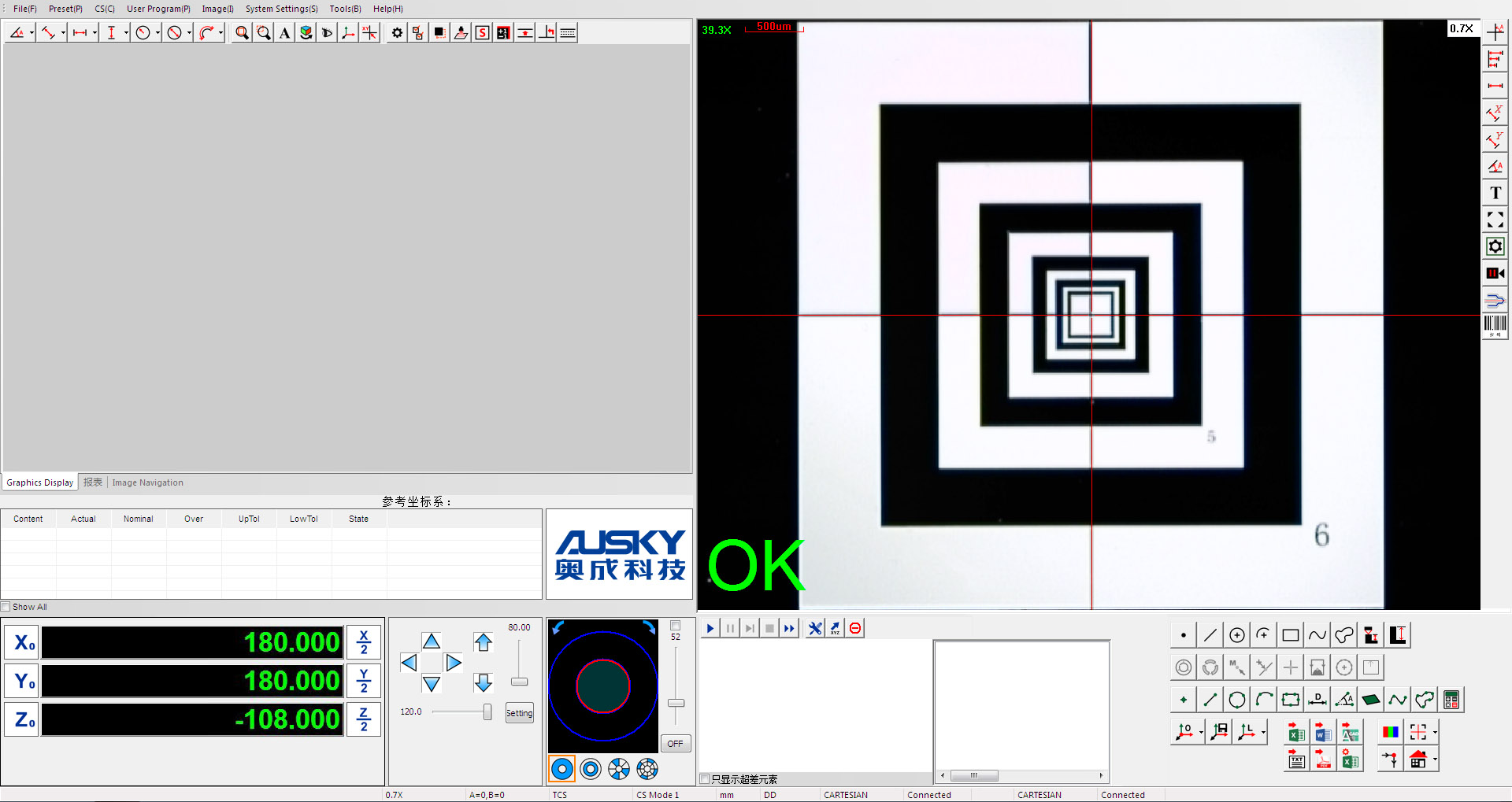

Software interface
A. Multiple measuring methods, including auto edge-tracing, auto
sectional edge-tracing, mouse on-screen point fetch, crossline
pointing, proximity pointing, contrast and pinnacle pointing,
contour pointing, probe pointing, laser pointing, and etc.
B. Powerful edge-tracing algorithm ensures sampling point accuracy
and automatic pixel correction on sampling stability,
where, one stroke will enable automatic pixel correction, needless
to shift frequently.
C. Element construction
Element structure technique, offers multiple methods, such as
shifting, rotating, extracting, combining, paralleling,
plumbing, mirroring, symmetry, intersecting, tangentially
structured elements; Element structure will enable user to
tackle some elements hard to measure, and consequently resulting in
increased working efficiency; The compositional
process is to select elements for compositional involvement, select
the result element, clear and simple. Options for
composition methods available in form of illustration.
D. Ample report functions
E. Red out-of-tolerance warning
In case of out-of-tolerance of the measuring result, the specific
element and item of element can be displayed, and the
derived EXCEL may the same prompt which item is out of the
tolerance.
F. Ample functions of the image window
Can display magnification ratio and scale, and can do simple
distance and angle measuring
G. Ample functions of coordinate system
Can establish multiple coordinate systems on the basis of the
actual circumstance, can switch flexibly data under all
coordinate systems, can achieve conveniently switchover between
straight angle coordinate system and polar coordinate
system, can achieve the save and call-out of different coordinate
system, and can display different modes of coordinate system.
H. Convenient program editing and modifying
Enable to modify conveniently light source data, kinetic data,
focusing data, program location, measuring height, and
etc., as well as can replace existing elements with new elements.
I Ample tolerance functions
Multiple calculations of size and geometric tolerance available;
Allowable for calculating 2D and 3D tolerance, e.g,
geometric tolerance as roundness, cylindricity, linearity,
planeness, etc., as well as tolerances as location, parallelism,
verticality, tilt, concentricity, pulsation, etc.
J. Map navigation, scanning and contour tracking software provides
powerful navigation functions
Can scan whole map by assigning a starting point and finishing
point, and can also import the pictures taken by external
sensors for navigation; The scanning function can be used in
reversing function, can designate starting point and
finishing point of the scanning, and special design algorithm;
allow to increase scanning accuracy and practicality
through filtering impurities; allow to track open or closed
graphics to have contour tracking, so as to obtain desired
contour. Can set number of scanning point, on contour, and software
can automatically calculate scanning spacing.
K. Powerful tagging function
Available in multiple tagging types, for example, tagging of
Distance, Angle, X Distance, Y Distance, Radius, Diameter,
Arc Length, and etc., allows to change position after tagging is
finished, as well as to automatically tag user, that will
remain after program is over.
