    High Precision 2D Measuring Machine Non Contact Type Measuring Instrument

    Ask Lasest Price
    Brand Name : AUSKY
    Model Number : AQC320
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets per month
    Delivery Time : 3 Work days
    • Product Details
    • Company Profile

    High Precision 2D Measuring Machine Non Contact Type Measuring Instrument

    High Precision 2D Measuring Machine Non Contact Type Measuring Instrument

    AQC Series Image Measuring Machine is a manual measuring instrument developed by Aucheng in response to market requirements. It combines the traditional optical and computer image processing technology. It can precisely measure the points, lines, circles and other basic elements of the workpiece plane. It is easy to operate, time-saving, high accuracy, many measuring methods and convenient to measure. It is suitable for all fields of dimension measurement.


    Technical parameters

    Paramter and Model

    AQC320

    Workbench

    Platfom size(mm)

    460X360

    Glass table size(mm)

    350X250

    Load-bearing weight(kg)

    20

    Travel

    X axis(mm)

    300

    Y axis(mm)

    200

    Z axis(mm)

    200

    Image and measurement system

    Display resolution(mm)

    1/0.5(Optional)

    Instrument precision(um)

    (3+L/200)um

    Imaging system(CCD)

    HD color 650TV

    Zoom objective(X)

    Zoom objective 0.7~4.5X

    Total video magnification(x)

    30~190X

    Working distance(mm)

    96mm

    Light source

    LED programmable partiton light source(Coaxial light source optional)

    Outline dimension(mm)

    740X660X970

    Weight(kg)

    250kg

    Power supply

    220V AC 50Hz


    Software interface




    Applicable scope:
    this measuring instrument can be used for dimensional accuracy measurement of various Aerospace, automobile and ship, scientific research and teaching, electronics, hardware and plastic, precision metal stamping plate, screen printing plate, acrylic plate, LCP film, PCB board, LCDTFT, glass cover plate, TP, frame of ultra-large LCD, die cutting, backlight module group, as well as for auxiliary measurements such as reverse engineering graphic R & D, design, drawing editing, laboratory inspection, etc.

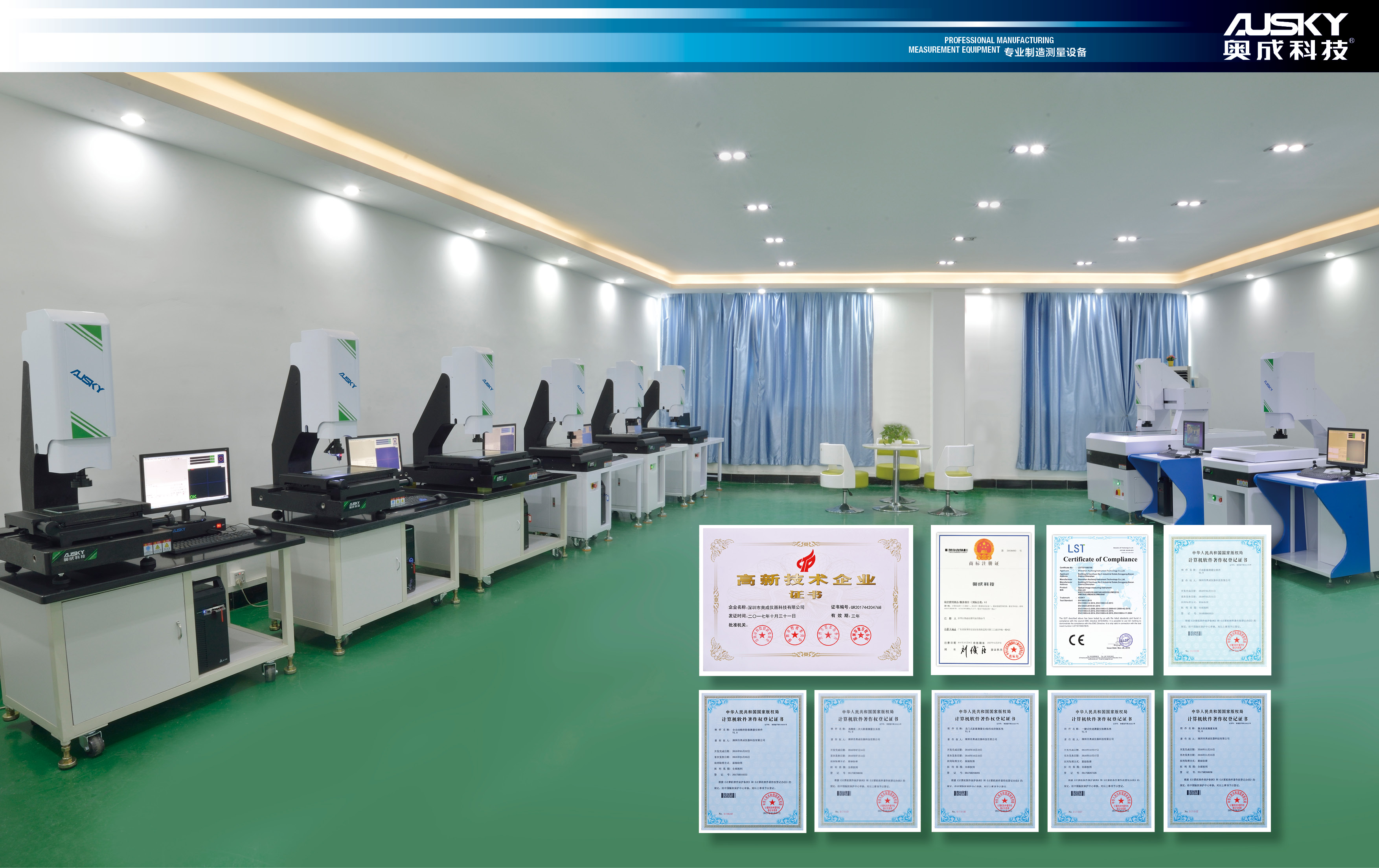

    Company profile:
