One Stroke Rapid Vision Measuring System Color HD CCD 5 Million
Pixels
NO1. The mechanism and application characteristics of one-stroke
measuring instrument:
1. Applicable scope of the instrument: The measuring instrument can
be applied to all kinds of mobile phones, hardware, plastics,
electronics, connectors, die-cutting, PCB board, FPC, glass, screw,
and other dimensions of rapid measurement and testing.
2. The main function of the instrument is to cooperate with Aotian
fast image measurement software, high-definition color CCD 5
million pixels, large field telecentric lens, specific light source
and motor.
3. Cost savings: It can realize multi-function of one machine,
greatly reduce the cost of repeatedly purchasing testing
instruments for users, and save labor costs and space for the use
of repeatedly purchasing testing instruments. It can satisfy the
needs of users and enterprises in the future, as well as the rapid
expansion of product testing, and lay a good foundation for the
quality assurance of users' products.
NO2.Technical parameters:
| Model and parameter | AMO36 | AMO68 | AMO100 | AMO150 | AMO240 |
| The camera | 5 million 2/3 inches | 5 million 2/3 inches, 12 million 11.1 inches, 20 million 1 inches
optional |
| Light source | According to the purpose of measurement,optional parallel bottom
light, telecentric bottom light, 1-8 partition ring light, coaxial
light ,etc |
| Repeatability(±μm ) | 1μm | 1μm | 1μm | 1.5μm | 2μm |
| Instrument precision(±μm ) | 2μm | 2μm | 3μm | 3μm | 4μm |
| 100 Element Measuring Time (s) | 0.2s | 0.2s | 0.2s | 0.2s | 0.2s |
| Load-bearing weight(KG) | 10KG | 10KG | 10KG | 20KG | 20KG |
| Outline dimension(mm) | 340x450x800 | 450x580x1900 |
Main features:
a. Complete image metrology software functions: including the
measurement of all kinds of 2D element points, lines, circles,
arcs, Polylines, spline curves;
b. Complete coordinate system, structure and tolerance calculation
function;
c. The function of importing and exporting CAD and offline
programming;
d. High-precision sub-pixel interpolation and lens distortion
compensation function;
e. Target recognition and image matching module (optional function)
f. In collaboration with other professional machine vision
companies, we take the lead in introducing advanced functions such
as general machine vision algorithm, image preprocessing, mosaic,
morphology, miscellaneous edge and weak edge recognition, gray
level variance, color difference discrimination, image template,
Blob, bar code, outline recognition and comparison in metrology
software; (Optional function)
g. Motion measurement module: supports on-line measurement-level
high-precision detection of moving objects. (Optional function)

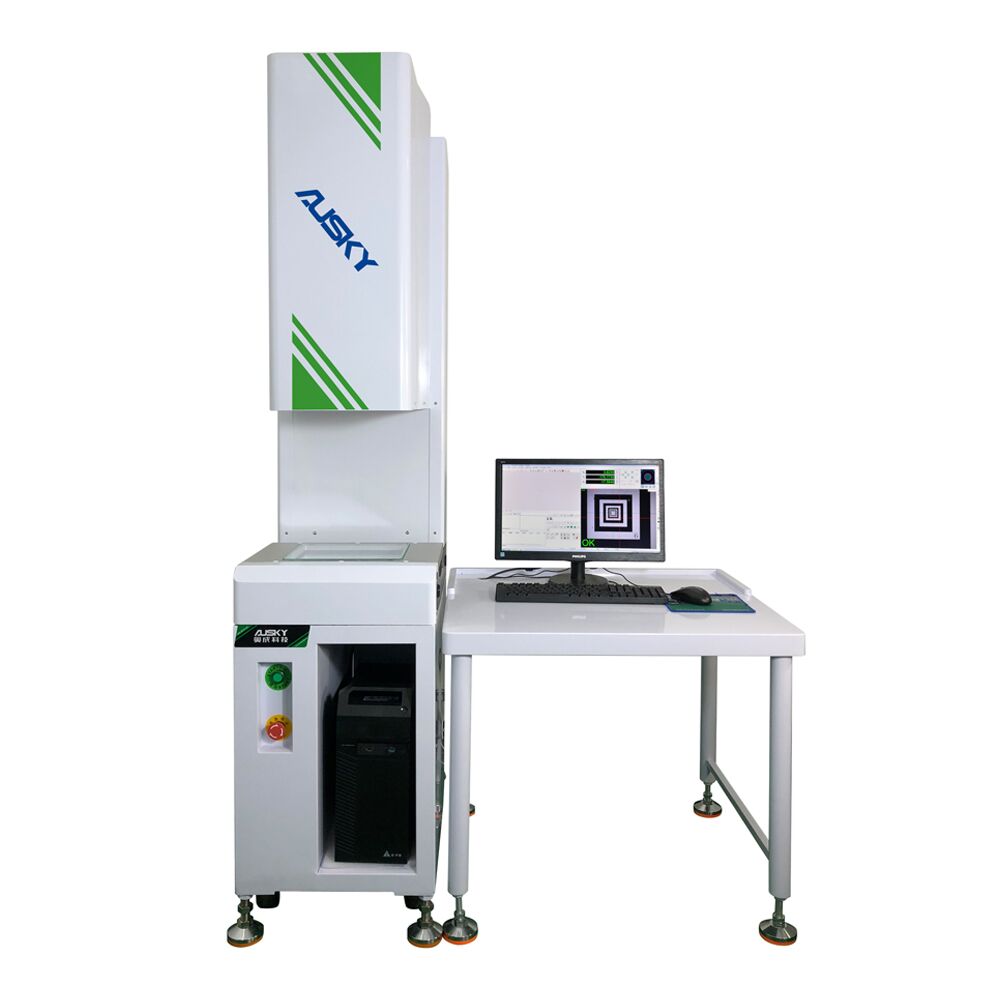

Product Display
