2.5D High Definition Color CCD Fully Automatic Video Measuring
Machine
1. Applicable scope:
this measuring instrument can be used for dimensional accuracy
measurement of various molds, aircraft, automobile, mobile phone,
computer, metals and hardware, plastics, electronics, die-cutting,
screen printing and stencil, LCP film, PCB board, FPC, LCDTFT,
glass cover-plate, TP, and frame of ultra-large LCD, as well as for
auxiliary measurements such as 2D and 3D measuring as needed in
reverse engineering, graphic R&D, design, plotting and editing,
and laboratory, etc.
2. Main functional configurations of instrument:
this instrument is used in coupling with dedicated image measuring
software, high-definition color 650TV CCD, high resolution of
0.7–4.5 folds (special high-definition zoom and fixed-focus screen
optical lens), dedicated computer, LCD, keyboard, mouse (optional) and digital measurement.
Technical parameters
| Paramter and Model | AMQ540 |
| Workbench | Platfom size(mm) | 720X620 |
| Glass table size(mm) | 550X450 |
| Weight limit(kg) | 20 |
| Travel | X axis(mm) | 500 |
| Y axis(mm) | 400 |
| Z axis(mm) | 200 |
| Image and measurement system | Display resolution(mm) | 1/0.5(Optional) |
| Instrument precision(um) | (3+L/200)um |
| Imaging system(CCD) | HD color |
| Zoom objective(X) | Zoom objective 0.7~4.5X |
| Total video magnification(x) | 30~190X |
| Working distance(mm) | 96mm |
| Light source | LED programmable partiton light source(Coaxial light source
optional) |
| Outline dimension(mm) | 1090X820X1700 |
| Weight(kg) | 550kg |
| Power supply | 220V AC 50Hz |
Configuration List:
| Sequence number | Name | Unit | Quantity |
| 1 | Main body | PCS | 1 |
| 2 | Instrument table | PCS | 1 |
| 3 | AUSKY software | PCS | 1 |
| 4 | video card | PCS | 1 |
| 5 | Joystick | PCS | 1 |
| 6 | Dongle | PCS | 1 |
| 7 | Computer | PCS | 1 |
| 8 | Liquid crystal display | PCS | 1 |
| 9 | Aocheng optical calibration block | PCS | 1 |
| 10 | Precision probe(optional) | PCS | 1 |
| 11 | Keyboard and mouse | PCS | 1 |
| 12 | Specification warranty card certificate | PCS | 1 |
Introduction to the software functions:
Software interface
A. Multiple measuring methods, including auto edge-tracing, auto
sectional edge-tracing, mouse on-screen point fetch, crossline
pointing, proximity pointing, contrast and pinnacle pointing,
contour pointing, probe pointing, laser pointing, and etc.
B. Powerful edge-tracing algorithm ensures sampling point accuracy
and automatic pixel correction on sampling stability,
where, one stroke will enable automatic pixel correction, needless
to shift frequently.
C. Element construction
Element structure technique, offers multiple methods, such as
shifting, rotating, extracting, combining, paralleling,
plumbing, mirroring, symmetry, intersecting, tangentially
structured elements; Element structure will enable user to
tackle some elements hard to measure, and consequently resulting in
increased working efficiency; The compositional
process is to select elements for compositional involvement, select
the result element, clear and simple. Options for
composition methods available in form of illustration.
D. Ample report functions
E. Red out-of-tolerance warning
In case of out-of-tolerance of the measuring result, the specific
element and item of element can be displayed, and the
derived EXCEL may the same prompt which item is out of the
tolerance.
F. Ample functions of the image window
Can display magnification ratio and scale, and can do simple
distance and angle measuring
G. Ample functions of coordinate system
Can establish multiple coordinate systems on the basis of the
actual circumstance, can switch flexibly data under all
coordinate systems, can achieve conveniently switchover between
straight angle coordinate system and polar coordinate
system, can achieve the save and call-out of different coordinate
system, and can display different modes of coordinate system.
H. Convenient program editing and modifying
Enable to modify conveniently light source data, kinetic data,
focusing data, program location, measuring height, and
etc., as well as can replace existing elements with new elements.
I Ample tolerance functions
Multiple calculations of size and geometric tolerance available;
Allowable for calculating 2D and 3D tolerance, e.g,
geometric tolerance as roundness, cylindricity, linearity,
planeness, etc., as well as tolerances as location, parallelism,
verticality, tilt, concentricity, pulsation, etc.

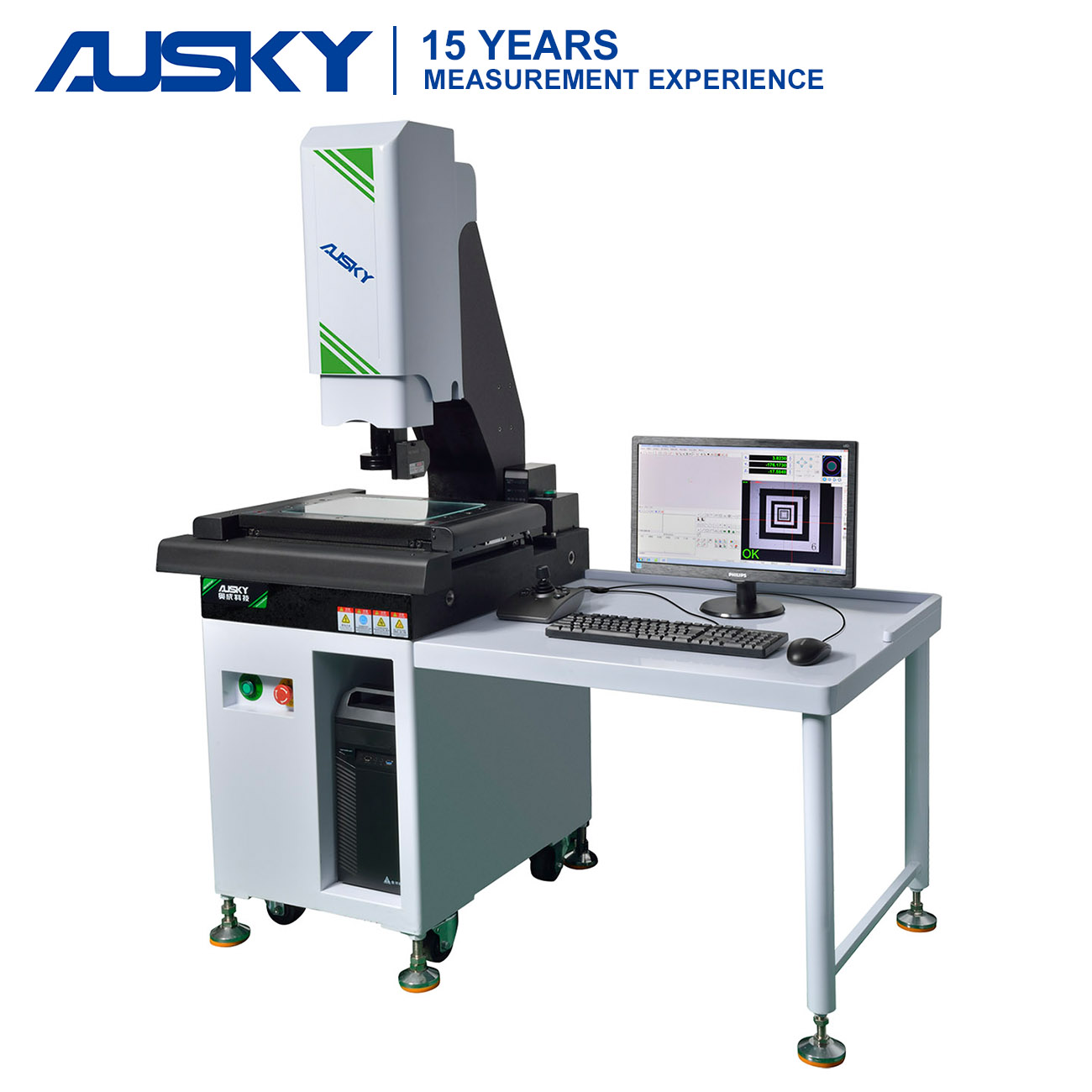

Product Display
