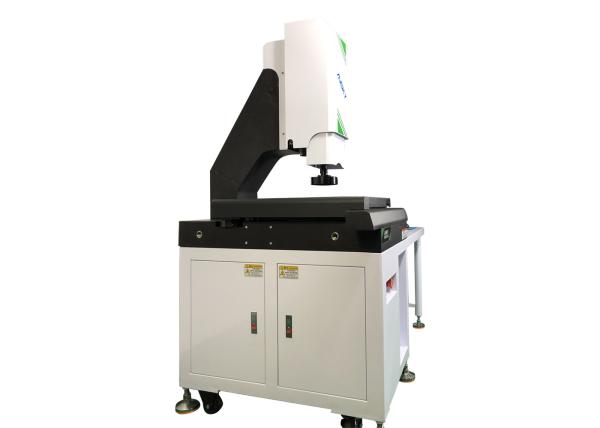

High Performance CNC Video Measuring System Ergonomically Designed
450KG
Mechanism and Application Characteristics of Coordinate measuring
machine:
1. Merits with the non-contact auto-measuring instrument:
This instrument can avoid human error of the “Object Work Piece” as
caused by manual measuring, and can as well avoid secondary damage
caused to “Object Work Piece” by manual measuring, with ensured
mass stability and criteria consistency of the object work piece.
This instrument can enhance multi-fold the detecting efficiency in
the production process, identify the defects and control over
non-yields beforehand in production process, and can meanwhile help
lower part of the costs spent on manual detection, and increase the
timeliness of product delivery.
2. Applicable scope:
this measuring instrument can be used for dimensional accuracy
measurement of various molds, aircraft, automobile, mobile phone,
computer, metals and hardware, plastics, electronics, die-cutting,
screen printing and stencil, LCP film, PCB board, FPC, LCDTFT,
glass cover-plate, TP, and frame of ultra-large LCD, as well as for
auxiliary measurements such as 2D and 3D measuring as needed in
reverse engineering, graphic R&D, design, plotting and editing,
and laboratory, etc.
3. Main functional configurations of instrument:
this instrument is used in coupling with dedicated image measuring
software, high-definition color 650TV CCD, high resolution of
0.7–4.5 folds (special high-definition zoom and fixed-focus screen
optical lens), dedicated computer, LCD, keyboard, mouse (optional) and digital measurement.
4. Overall Merits:
A. Suitable for measuring applications of multi-variety, complex
dimensions and demanding measuring accuracy, with even easy and
quick measuring efficacy and enhanced measuring efficiency.
B. The instrument has the following merits with regard to image
processing: automatic burrs skip-over, auto generating measurement
reports and results statistics, and open for linking to printers,
etc., suitable for wide industry applications.
Technical parameters
Paramter and Model | AMQ320 | AMQ430 | AMQ540 |
Workbench | Platfom size(mm) | 460X360 | 560X460 | 720X620 |
Glass table size(mm) | 350X250 | 450X350 | 550X450 |
Load-bearing weight(kg) | 20 | 20 | 20 |
Travel | X axis(mm) | 300 | 400 | 500 |
Y axis(mm) | 200 | 300 | 400 |
Z axis(mm) | 200 | 200 | 200 |
Image and measurement system | Display resolution(mm) | 1/0.5(Optional) |
Instrument precision(um) | (3+L/200)um |
Imaging system(CCD) | HD color |
Zoom objective(X) | Zoom objective 0.7~4.5X |
Total video magnification(x) | 30~190X |
Working distance(mm) | 96mm |
Light source | LED programmable partiton light source(Coaxial light source
optional) |
Outline dimension(mm) | 740X610X1685 | 870X710X1680 | 1090X820X1700 |
Weight(kg) | 400kg | 450kg | 550kg |
Power supply | 220V AC 50Hz |
Configuration List:
Sequence number | Name | Unit | Quantity |
1 | Main body | PCS | 1 |
2 | Instrument table | PCS | 1 |
3 | AUSKY software | PCS | 1 |
4 | video card | PCS | 1 |
5 | Joystick | PCS | 1 |
6 | Dongle | PCS | 1 |
7 | Computer | PCS | 1 |
8 | Liquid crystal display | PCS | 1 |
9 | Aocheng optical calibration block | PCS | 1 |
10 | Precision probe(optional) | PCS | 1 |
11 | Keyboard and mouse | PCS | 1 |
12 | Specification warranty card certificate | PCS | 1 |
Introduction to the software functions:
Software interface
A. Multiple measuring methods, including auto edge-tracing, auto
sectional edge-tracing, mouse on-screen point fetch, crossline
pointing, proximity pointing, contrast and pinnacle pointing,
contour pointing, probe pointing, laser pointing, and etc.
B. Powerful edge-tracing algorithm ensures sampling point accuracy
and automatic pixel correction on sampling stability,
where, one stroke will enable automatic pixel correction, needless
to shift frequently.
C. Element construction
Element structure technique, offers multiple methods, such as
shifting, rotating, extracting, combining, paralleling,
plumbing, mirroring, symmetry, intersecting, tangentially
structured elements; Element structure will enable user to
tackle some elements hard to measure, and consequently resulting in
increased working efficiency; The compositional
process is to select elements for compositional involvement, select
the result element, clear and simple. Options for
composition methods available in form of illustration.
D. Probe measuring
Powerful functions of software probe measuring enable to character
2D & 3D elements such as height, plane, cylinder,
cone, sphere, ring, etc., and support multiple methods for
establishing 3D coordinates system, with rapid and efficient
programming.
E. Composite measuring of probe and image
Composite measuring by complementing probe with image optical
system achieves multi-purpose measuring of image
and probe.
F. Workpiece array and array macro function
Such function is applied in automatic image measuring instrument.
When a bunch of identical workpieces are placed and
literally equally spaced on one measure fixture, measure one of the
workpieces at first, before measure all the
workpieces on the measure fixture. This will not only save the time
for edge-tracing measuring, but also simplify the
user program
