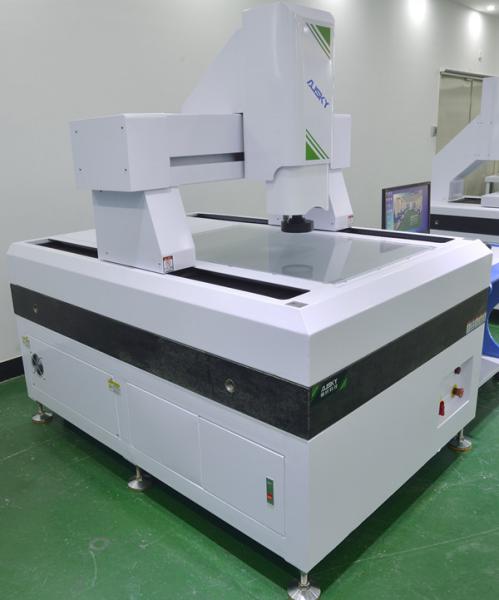

Tri Axial Optical Coordinate Measuring Machine For Precision Metal
Stamping
Mechanism and Application Characteristics of Coordinate measuring
machine:
1. Movement of Mechanism:
This measuring instrument is provided with tri-axial automatic
control and equipped with import precision Nidec patch grating
system, Japan Panasonic servo high-efficiency motor system, Taiwan
TBI screw rod, Taiwan HIWIN high-precision guide rail as well as
professional measuring software for measurement.
2. Merits with auto-measuring instrument:
This instrument can avoid human error of the “Object Work Piece” as
caused by manual measuring, and can as well avoid secondary damage
caused to “Object Work Piece” by manual measuring, with ensured
mass stability and criteria consistency of the object work piece.
This instrument can enhance multi-fold the detecting efficiency in
the production process, identify the defects and control over
non-yields beforehand in production process, and can meanwhile help
lower part of the costs spent on manual detection, and increase the
timeliness of product delivery.
3. Main functional configurations of instrument:
This instrument is used in with AUSKY professional automatic
measurement software, Aotian special controller,MEAN WELL power
supply, Panasonic servo motor drive system, TEO color 650TV CCD,
PMS high resolution of 0.7–4.5 folds special high-definition Auto
zoom and fixed-focus screen optical lens, LED partition
program-controlled light source, import precision Nidec patch
grating system, Lenovo computer,LCD monitor,keyboard, mouse, and
the digital measurement.
4. Saving cost:
This instrument can achieve multiple functions on the same set of
equipment, resulting in saved user costs for repeated purchasing of
measurement devices as well as saved labor costs and equipment
occupation space. It can meet the needs of user enterprises for
greater development in the future and the demand for rapid
expansion of product testing to lay sound foundation for users’
quality assurance.
Technical parameters
| Paramter and Model | AMH2115 | AMH2515 |
| Workbench | Glass table size(mm) | 2200X1548 | 2606X1548 |
| Load-bearing weight(kg) | 30 | 30 |
| Travel | X axis(mm) | 1500 | 1500 |
| Y axis(mm) | 2100 | 2500 |
| Z axis(mm) | 200 | 200 |
| Image and measurement system | Display resolution(mm) | 1/0.5(Optional) |
| Instrument precision(um) | (4+L/200)um |
| Imaging system(CCD) | TEO HD color |
| Zoom objective(X) | High percision automatic zoom lens program control |
| Total video magnification(x) | 30~190X |
| Working distance(mm) | 96mm |
| Light source | LED programmable partiton light source(Coaxial light source
optional) |
| Outline dimension(mm) | 3000X2130X1850 | 3350X2130X1850 |
|
| Weight(kg) | 6000kg | 7000kg |
| Power supply | 220V AC 50Hz |
Configuration List:
Sequence number | Name | Unit | Quantity |
1 | Main body | PCS | 1 |
2 | Instrument table | PCS | 1 |
3 | AUSKY software | PCS | 1 |
4 | video card | PCS | 1 |
5 | Joystick | PCS | 1 |
6 | Dongle | PCS | 1 |
7 | Computer | PCS | 1 |
8 | Liquid crystal display | PCS | 1 |
9 | Aocheng optical calibration block | PCS | 1 |
10 | Precision probe(optional) | PCS | 1 |
11 | Keyboard and mouse | PCS | 1 |
12 | Specification warranty card certificate | PCS | 1 |
Introduction to the software functions:
Software interface
A. Red out-of-tolerance warning
In case of out-of-tolerance of the measuring result, the specific
element and item of element can be displayed, and the
derived EXCEL may the same prompt which item is out of the
tolerance.
B. Ample functions of the image window
Can display magnification ratio and scale, and can do simple
distance and angle measuring
C. Ample functions of coordinate system
Can establish multiple coordinate systems on the basis of the
actual circumstance, can switch flexibly data under all
coordinate systems, can achieve conveniently switchover between
straight angle coordinate system and polar coordinate
system, can achieve the save and call-out of different coordinate
system, and can display different modes of coordinate system.
D. Convenient program editing and modifying
Enable to modify conveniently light source data, kinetic data,
focusing data, program location, measuring height, and
etc., as well as can replace existing elements with new elements.
E. Map navigation, scanning and contour tracking software provides
powerful navigation functions
Can scan whole map by assigning a starting point and finishing
point, and can also import the pictures taken by external
sensors for navigation; The scanning function can be used in
reversing function, can designate starting point and
finishing point of the scanning, and special design algorithm;
allow to increase scanning accuracy and practicality
through filtering impurities; allow to track open or closed
graphics to have contour tracking, so as to obtain desired
contour. Can set number of scanning point, on contour, and software
can automatically calculate scanning spacing.
F. Powerful tagging function
Available in multiple tagging types, for example, tagging of
Distance, Angle, X Distance, Y Distance, Radius, Diameter,
Arc Length, and etc., allows to change position after tagging is
finished, as well as to automatically tag user, that will
remain after program is over.
G. Probe measuring
Powerful functions of software probe measuring enable to character
2D & 3D elements such as height, plane, cylinder,
cone, sphere, ring, etc., and support multiple methods for
establishing 3D coordinates system, with rapid and efficient
programming.
H. Import CAD graphics for measuring
The software supports measuring on workpieces with CAD graphics as
template, which enable coordinate measuring or
comparison measuring. Such function is applicable to workpiece of
any contour/shape within gauging range of the
measuring instrument.
