    Automatic 3D Optical Measurement System Image Measuring Instrument 800Kg

    Ask Lasest Price
    Brand Name : AUSKY
    Model Number : Daisy 686
    Certification : CE / ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 sets per month
    Delivery Time : 15 Work days
    • Product Details
    • Company Profile

    Automatic 3D Optical Measurement System Image Measuring Instrument 800Kg

    Automatic 3D Optical Measurement System Image Measuring Instrument 800Kg



    Technical Parameters

    Model

    Daisy686

    Measuring area

    600mm *800mm*600mm(XYZ)

    External Size

    1356 mm×1940 mm×2710 mm

    Capacity

    800Kg

    Indication error

    ≤2.5+L/300mm

    Detection error

    ≤ 2.5mm

    Grating ruler

    Renishaw Metal grating ruler

    Scale resolution

    0.1um

    Control system

    MORA DCC

    Air Supply System

    Min. Air Pressure:5.5bar(0.55MPa)

    Air Consumption:250NL/min

    Electrical Requirements

    Frequency: 50/60 Hz

    Power: < 1100W

    Earth resistance: < 4Ω

    Environment Specifications

    verage Room Temperature: 18 - 22°C

    Maximum Thermal Gradients: 2 °C/day, 1°C/hour, 1°C/meter surrounding the machine.

    Humidity: 40% to 70%2).

    The location must be far away from the vibration source to avoid being placed above the two floor so as not to affect the accuracy of the vibration

    Avoid direct sunlight and use the RC structure as far as possible

    The air outlet of the air conditioner avoids direct blowing to the machine, and it is best to have an automatic temperature control system



    Configuration List

    Item

    Name

    Specification model

    Qty

    Note

    1

    Machine

    Daisy564
    Coordinate Measuring Machine

    1



    Measuring range:
    500mm x600mmx400mm

    2

    Manual information

    Daisy Series User Manual

    1



    3

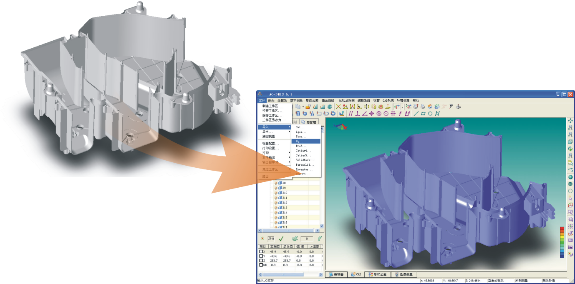

    Measuring software

    AC-DMIS EXT Installation Disk

    1



    4

    Manual information

    AC-DMIS (Electronic Edition) Software Manual

    1



    5

    Control system
    Control handle

    German MORA DCC control system,Control handle with MCU

    1



    6

    Measuring seat

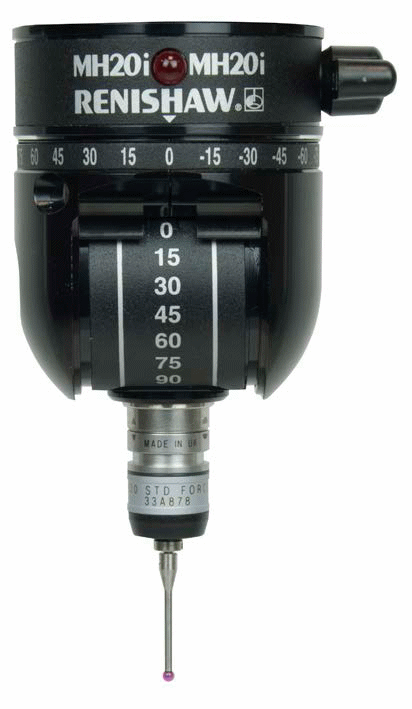

    British RENISHAW MH20i Manual Dual-Rotation Indexing Probe System

    1



    7

    Head suit

    UK Renishaw TP20Measuring head

    1



    8

    Calibrated ball

    diameter25

    1



    9

    Probe

    Needle group Suit

    1



    10

    Computer

    DELL High end business suit

    1



    Ink jet printer

    1

    11

    certificate

    Product Exit Certificate

    1
