Gantry Structure CNC Video Measuring Machine Non Deformable Easy
Operate
CNC gantry structure Video Measuring Machine Gantry Structre CNC
Video Measuring Machine

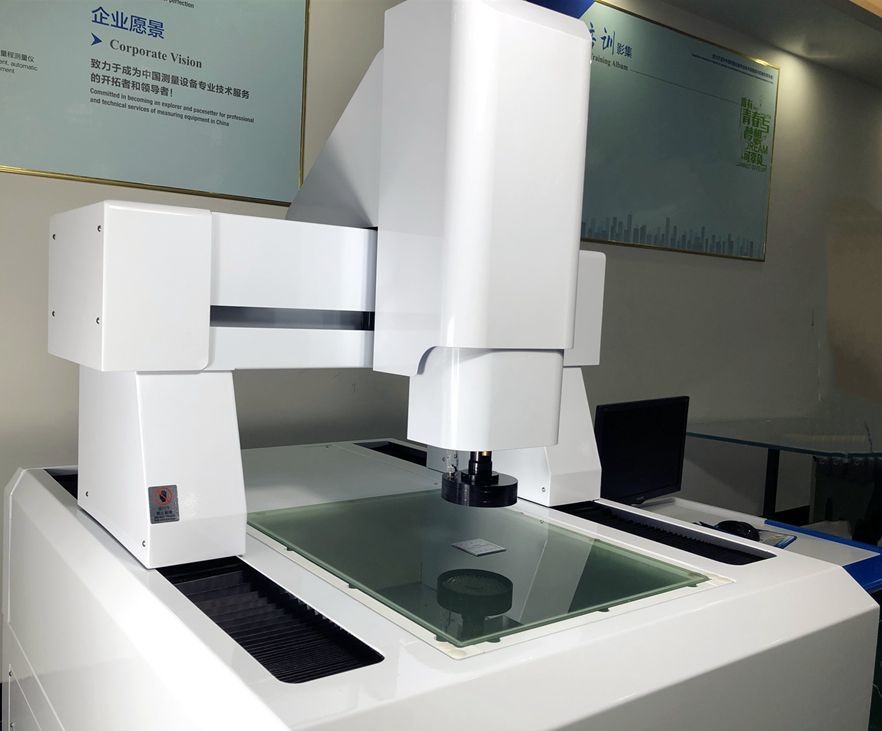

Construction of the instrument:
Designed with workbench of a marble panel base and gantry
mechanism, the instrument is characterized by steady accuracy, good
adaptability to working environment, simple, strong, non-deformable
and good-looking body structure, and ergonomically designed
operating mechanism, and meanwhile is equipped with powerful
measuring software and is easy to operate.
Applicable scope:
this measuring instrument can be used for dimensional accuracy
measurement of various molds, aircraft, automobile, mobile phone,
computer, metals and hardware, plastics, electronics, die-cutting,
screen printing and stencil, LCP film, PCB board, FPC, LCDTFT,
glass cover-plate, TP, and frame of ultra-large LCD, as well as for
auxiliary measurements such as 2D and 3D measuring as needed in
reverse engineering, graphic R&D, design, plotting and editing,
and laboratory, etc.
Specifications
Configuration List:
| Sequence number | Name | Unit | Quantity |
| 1 | Main body | PCS | 1 |
| 2 | Instrument table | PCS | 1 |
| 3 | AUSKY software | PCS | 1 |
| 4 | video card | PCS | 1 |
| 5 | Joystick | PCS | 1 |
| 6 | Dongle | PCS | 1 |
| 7 | Computer | PCS | 1 |
| 8 | Liquid crystal display | PCS | 1 |
| 9 | Aocheng optical calibration block | PCS | 1 |
| 10 | Precision probe(optional) | PCS | 1 |
| 11 | Keyboard and mouse | PCS | 1 |
| 12 | Specification warranty card certificate | PCS | 1 |
FAQ
1. How to Choose the Appropriate Specification
As long as you tell us variety and size of product to be measured,
our professional team would advise you
of measuring instrument of suitable specifications.
2. What is the delivery term of your products?
For instruments of general specifications, we have stock ready for
sale. For instruments of bigger sizes
(larger than 1000mm), we can discuss and determine on the concrete
delivery time, which is generally,
3-5 working days after receipt of the payment. However, if you are
in urgent need, we can have the prioritized
consideration for you.
3. Do you accept customized service?
Yes sure! We can provide not only routine machines, but also the
machines customized to customer’s needs.
Please tell us your concrete requirements, we would come out with
designplan tailored exclusively for you.
4. What is your warranty period?
Our product warranty period is one (1) year. Our product quality is
very stable, You can rest assured of our product quality.
5. Have you ever had clients in our country before?
Our equipment has been widely sold to Malaysia, UK, Italy, Germany,
India, Pakistan, Philippines, Singapore,
Thailand and Vietnam, Korea, USA, Poland, Russia,
Turkey,Mexico,Israel.
